FUM6018-2CY-RS

Model

Unidirectional Electret Condenser Microphone

Dimension

Diameter:6.0mm±0.05

Height :1.8mm±0.05

Sensitivity

-44±2dB (0dB=1V/Pa,1kHz)

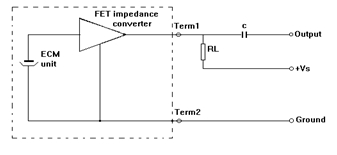

Schematic

No

Item

Specification

1

Sensitivity

-44±2dB (0dB=1V/Pa,1kHz)

2

Impedance

2.2KΩ

3

Directivity

Omnidirectional

4

Frequency

20-20,000Hz

5

Standard operation voltage

3v

6

Max. Operation voltage

10V

7

Current consumption

Max.0.5mA

8

Sensitivity reduction

Within -3dB at 1.5V

9

S/N ratio

More than 58dB

10

Comply with

RoHS

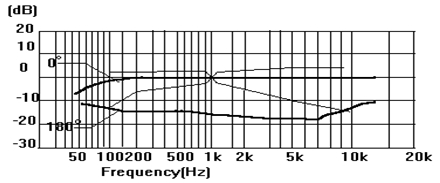

Typical Frequency Response Curve

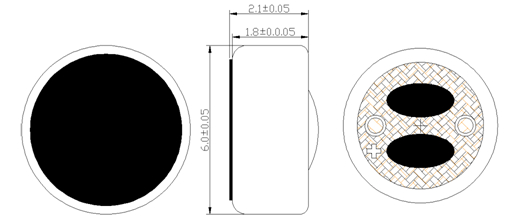

Dimension Drawing

Cautions:

The soldering copper of smaller type of less than 20W shall be applied.

The temperature of the working surface of the soldering hopper shall be below 320℃.

E.C.M shall be soldered fixed on the metal block (heat sink) which has the higher radiation effects, Said heat sink shall contact with each of E.C.M.

The soldering time for each terminal shall be 1~2 sec.

The pin hole soldering shall be avoided.

6.E.C.M may easily destroyed by the static electrify, and the countermeasure for eliminating the static electricity (the ground for soldering copper, for worktable and for human body) shall be executed.
