C6027P4-RS
1.Mechanical Specifications:
1.1 Dimension:Φ6.0±0.2 ×2.7±0.2
1.2 Weight:<0.3g
1.3 Storage temperature:-40℃~ +85℃
1.4 Operating temperature range:-30℃~ +70℃
2.Electrical Specifications:(Ta=20±2℃ R.H.=30%~70%)
|
Item |
Negative air pressure increases |
Rate Min |
Rate |
Rate Max |
Unit |
|
Static capacitance |
0Pa |
12 |
16 |
20 |
PF |
|
Dynamic capacitance |
-450±50Pa |
13 |
18 |
24 |
PF |
|
Capacitance change rate |
-450±50Pa |
8 |
|
20 |
% |
|
Law compliance |
RoHS |
||||

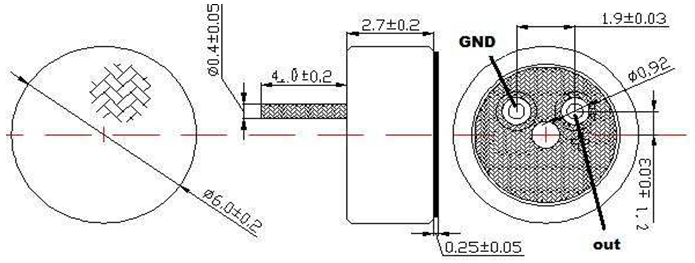

3.Appearance Drawing(unit:mm):

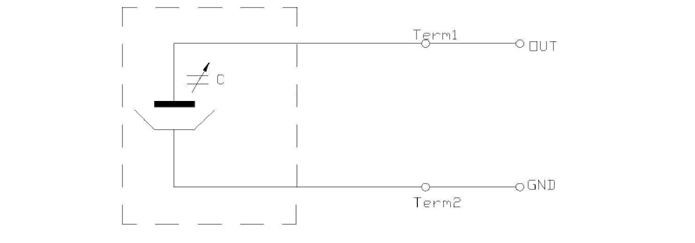

4.Schematic Diagram:
Data download:C6027P4-RS.rar
